If you want to repair a camera or want to know more about its technology and inner workings, the associated service (repair) manual provided by the manufacturer is a great thing.
My camera has a problem. Can the manufacturer's service manual help me?
You will find technical specifications there, exploded drawings that show the individual components and their connections to each other, information about the electronics, component names, adjustment procedures, version notes or technical troubleshooting instructions.
Indispensable for anyone who ventures into the depths of a camera with a screwdriver.
No tutorials
However, one thing these manuals are not is tutorials that show step by step how to solve a problem, with pictures and helpful comments.
Rather they assume that you already have everything you need for the trip and can work with it: tools, how to use them correctly, understanding of the technical context, knowledge of electronics, organization of the workflow, etc.
Even the troubleshooting instructions in the service manuals on which you might place your hopes in order to solve a problem assume that you understand what it is about, how to dismantle the camera in order to use it or how to determine electrical values.
DIY repairers can be detered for now …
The language in the service manuals addresses experts who are familiar with abbreviations, the information is limited to the bare essentials, a lot is assumed.
This can deter many people interested in DIY.
Instead of getting help to solve the problem, they are faced with new puzzles and might get frustrated, some even doubt their abilities, others throw the screwdriver in the drawer forever.
Therefore, you should be aware that the service manuals provide support but do not instruct.
… but benefit more and more as a result
Over time, with constant practice, this information becomes more and more helpful as you become familiar with the presentation and language. You can then glean important information from them that will help.
Therefore, you should approach the service manuals in a relaxed manner, see what helps you and what doesn't, and find ways to solve the problem yourself.
Or there are already tutorials that largely do this work for you.
Never give up as a DIY repairer!
But the most important thing is:
If you do DIY, never let the technology intimidate you.
And never give up!
Some examples from service manuals and troubleshooting instructions
Exploded view of the shutter of a Minolta X-700 and manufacturer's names of the individual parts in the associated service manual by Minolta. Here you can see which parts are installed and how they are connected to each other. But you have to be able to classify what you see and how to get there. Disassembly and assembly are always a prerequisite. The part names bring consistency; you don't have to invent terms yourself for this particular camera that others don't know.
Instructions for adjusting the flash mode display in the Canon T90 service manual. Electronic knowledge and measuring methods are required here. Likewise, finding and finding your way around the associated parts of the flexible printed circuit board.
Trobleshooting instructions for solving a shutter problem in the service manual for the Minolta X-700. Finding your way around the flexible printed circuit board is required, as is finding further relevant information in the service manual.
Generally understandable information about digital switching in the service manual for the Canon A-1. Unfortunately, such helpful explanations for non-specialists are rare.

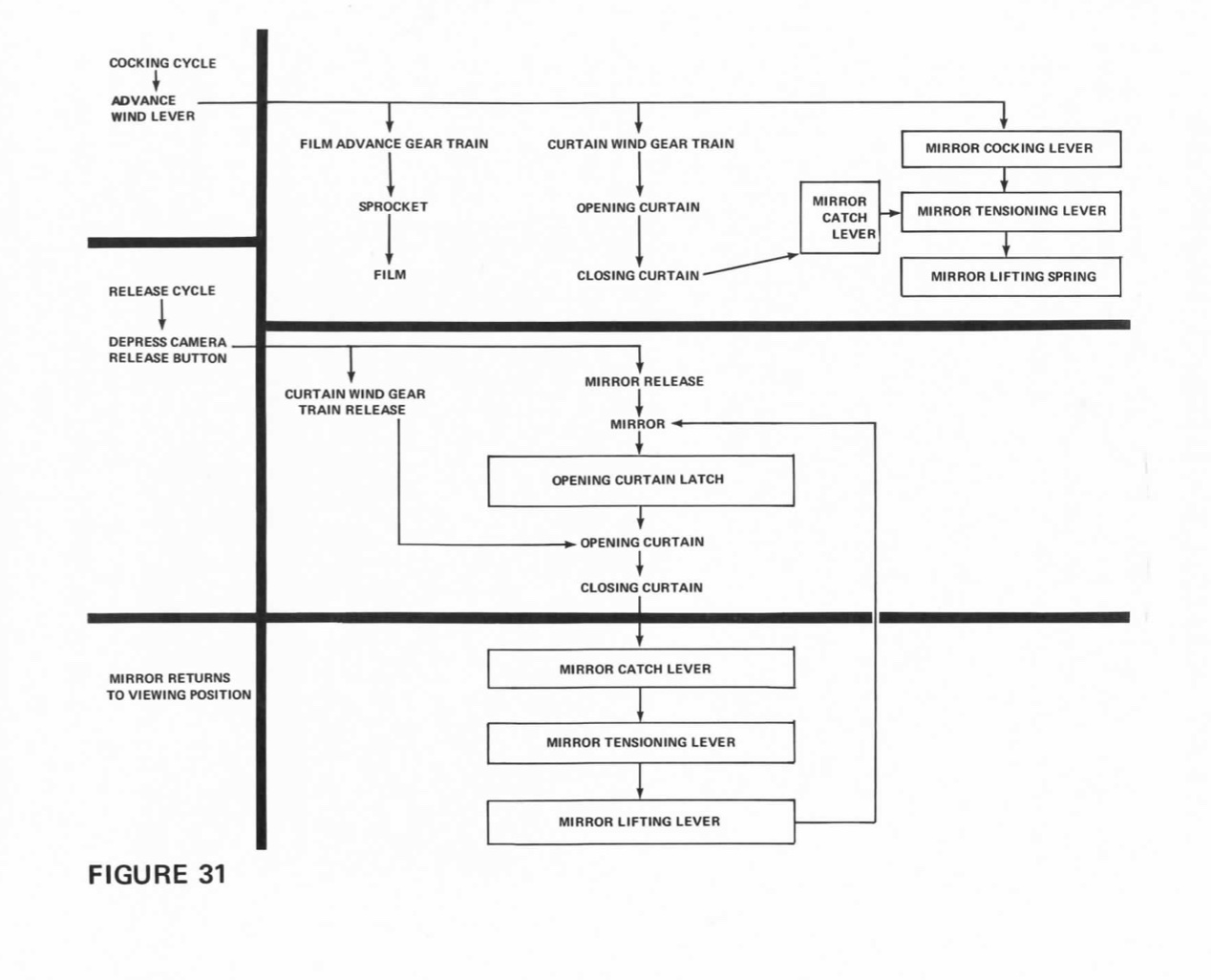

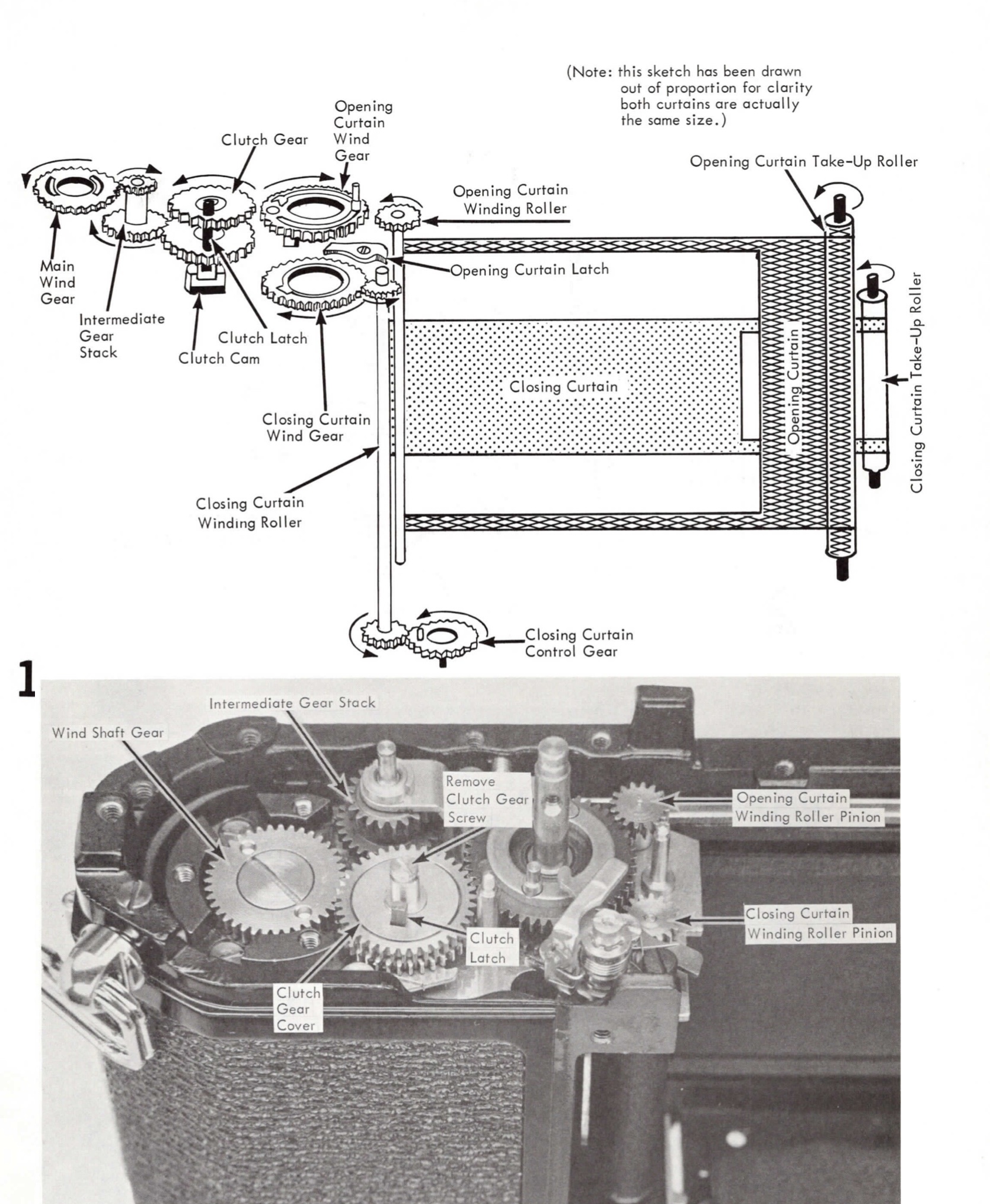

Practical problem-solving instructions in the form of a tutorial in an edition of the C & C Associates troubleshooting guides. Here, experienced and less experienced repairers are addressed in generally understandable and pictorial language. These are the best aids for DIY.
