Disposable syringes with thin cannulas for placing liquids

[Andreas Thaler]

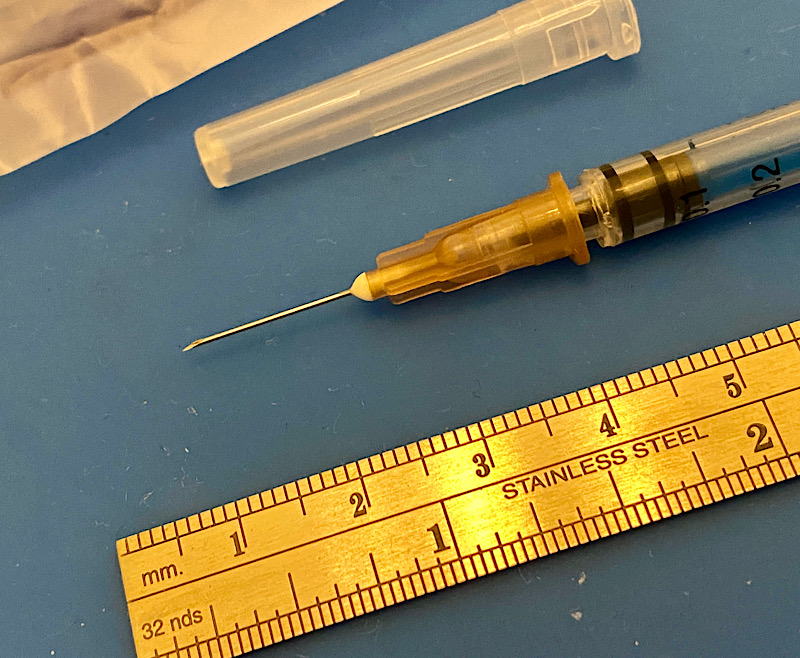

I was looking for syringes with thin needles for dispensing small amounts of alcohol, oil and benzine on Amazon.

For just under EUR/USD 12 you can get 30 disposable plastic syringes with needles and a volume of 1 millilitre.

Country of origin: China.

The selection on Amazon is huge.

https://www.amazon.de/gp/aw/d/B0D25NTB7Z?psc=1&ref=ppx_pop_mob_b_asin_title

(amazon.de)



[xkaes]

Out here in the Wild West, it's easy to get a wide variety of syringes at veterinarian supply stores -- and support local businesses.

Perhaps the best thing about Vet shops is that they have a good supply of BIG, THICK needles (for BIG animals). This makes thicker liquids (Rapid fix, etc.) easier to handle -- and they have JUMBO-sized syringes (sizes you would never use on a human!!!).

Always take a file to the tip of the needle before using -- to flatten it out. After all, they are designed to pierce skin VERY easily -- and they will if you are not careful.



[ic-racer]

I found oils and various thinners like alcohol, acetone etc can swell or soften the rubber so I use the glass ones.



[blee1996]

For my use, I buy from Amazon "art & craft syringes" that have blunt tips instead of sharp tips. This way I can avoid stabbing myself, while still get small enough droplets (1ml).



[Andreas Thaler]

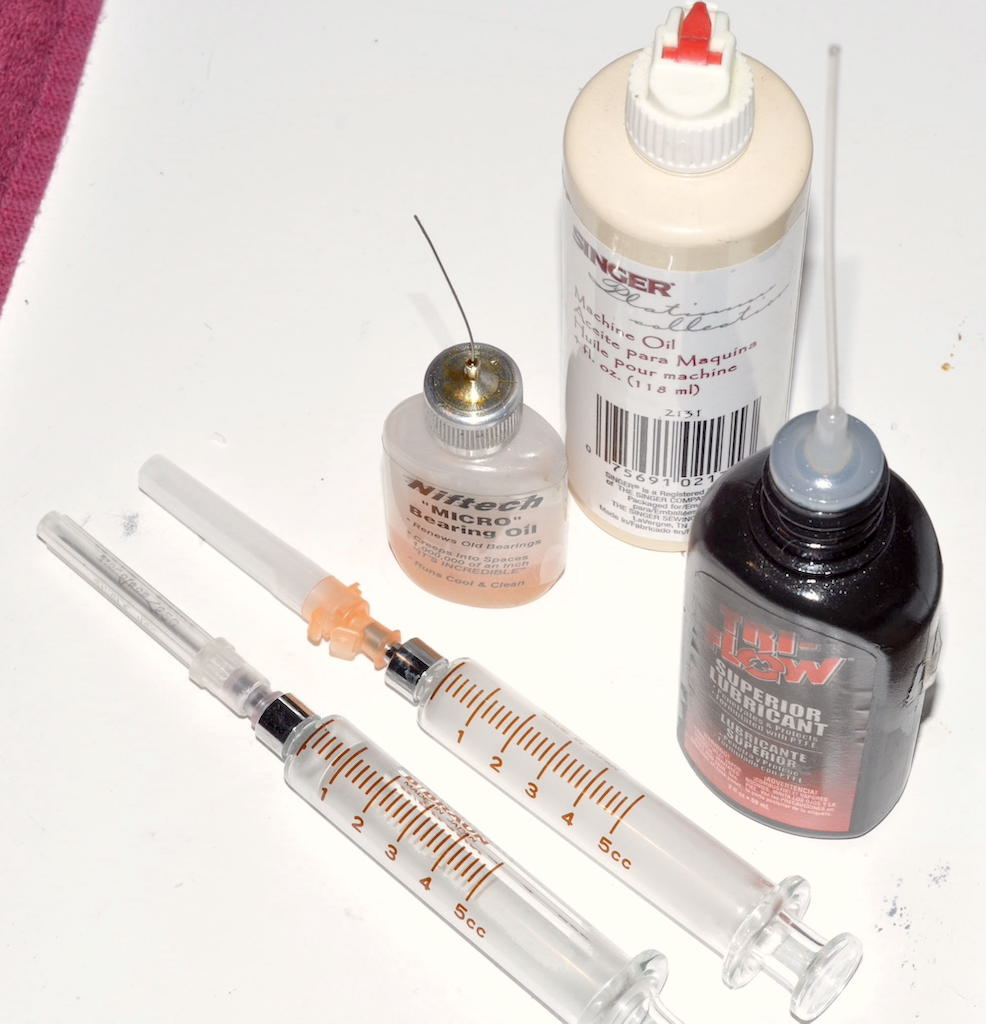

I found oils and various thinners like alcohol, acetone etc can swell or soften the rubber so I use the glass ones.

View attachment 385239

Yes, you have to be careful, so I only use it for a short time and then throw it away.



[Andreas Thaler]

I also have a set of oilers in different sizes for applying small amounts of oil. To do this, simply dip the tip in a little oil.

Here it is used on the mirror box of the Nikon F4.



[ic-racer]

I like those!



[ic-racer]

Is this the mechanism that stops the aperture lever at the correct place?



[Andreas Thaler]

I like those!

Oiler, Swiss Set Style Dip 4 in Plastic

Have flat steel tips for picking up oil and depositing on touch. Plastic handles are non-rolling, and color coded for quick identification. Dust caps keep tips clean. Flat steel tips for picking up oil and depositing on touch Plastic handles are non-rolling Color coded for quick identification...

www.micro-tools.com



[Andreas Thaler]

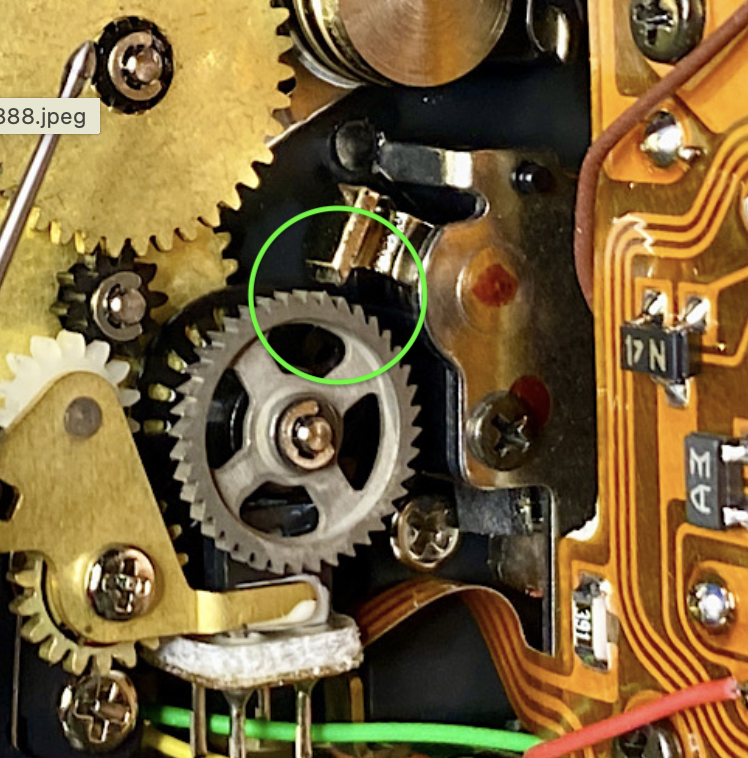

Is this the mechanism that stops the aperture lever at the correct place?
View attachment 385243

I can't say, but it's plausible with the sprocket. The infamous wheel turns a photointerruptor (the black wheel with recesses behind it).

The beam of light that is interrupted sits like a fork underneath. It can be seen in the photo.



[Andreas Thaler]

And these plastic foam sticks can even withstand acetone for a short time, in my experience.

Ideal for cleaning, I use them in large quantities.

Also available in a wide selection on Amazon.



[ic-racer]

I can't say, but it's plausible with the sprocket. The infamous wheel turns a photointerruptor (the black wheel with recesses behind it).

The beam of light that is interrupted sits like a fork underneath. It can be seen in the photo.

You may have seen in another thread I have a N75 that looks un-used with a fault in that area. I'm still trying to figure out how it works for there may be a way to repair it. For example, why would a late model camera that looks un-used have a fault? It is a $9 camera, so I'm more interested in figuring out how it works.



[Andreas Thaler]

You may have seen in another thread I have a N75 that looks un-used with a fault in that area. I'm still trying to figure out how it works for there may be a way to repair it. For example, why would a late model camera that looks un-used have a fault? It is a $9 camera, so I'm more interested in figuring out how it works.

How do you go about troubleshooting?



[ic-racer]

I has been written that there is an electro magnet that instantly stops the aperture lever at the correct location. Apparently this can fail.
I also collect and repair electric guitars. The guitar pickup is like an electromagnet but for sensing only. Anyway, there are no moving parts, almost always failure is because the fine wire wrapped around the steel core is broken somewhere. These can even be re-wound.

Another possibility the electromagnet is too far away (broken plastic or glue). I'll check for that too.

If all of that is OK then there may be an optical sensor, so I'd like to check that.



[Andreas Thaler]

I has been written that there is an electro magnet that instantly stops the aperture lever at the correct location. Apparently this can fail.
I also collect and repair electric guitars. The guitar pickup is like an electromagnet but for sensing only. Anyway, there are no moving parts, almost always failure is because the fine wire wrapped around the steel core is broken somewhere. These can even be re-wound.

Another possibility the electromagnet is too far away (broken plastic or glue). I'll check for that too.

If all of that is OK then there may be an optical sensor, so I'd like to check that.

Keep us updated, please!



[bernard_L]

Not just liquids. I use one --medium size tube, flat tip-- for Teflon grease. Minute quantities dispensed just where needed. The piece of clear tubing serves as a protective cover.



[ic-racer]

Keep us updated, please!

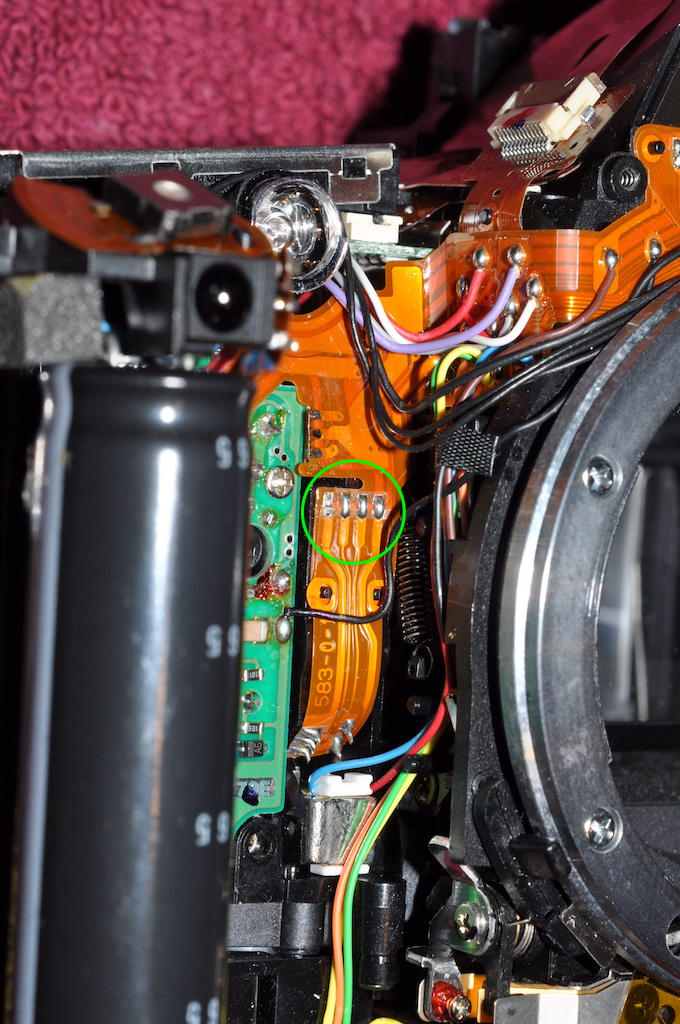

I just fixed it. It indeed was a cold solder joint leading to the aperture control mechanism!

Nikon N75 'Err' Message Successful Repair

The 'Err' message can show on a number of late model Nikon cameras for various reasons. This thread is about the 'Err' message that shows up for the condition "Malfunction Detected."

www.photrio.com



[Andreas Thaler]

I just fixed it. It indeed was a cold solder joint leading to the aperture control mechanism!

Nikon N75 'Err' Message Successful Repair

The 'Err' message can show on a number of late model Nikon cameras for various reasons. This thread is about the 'Err' message that shows up for the condition "Malfunction Detected."

www.photrio.com

View attachment 385333

Great!

And until now I thought that such soldering was always perfect.

This gives me hope for my F3AF, whose display no longer shows reasonable values.

Post in thread 'Nikon F3 and special models: Care, service and repair'
https://www.photrio.com/forum/threa...s-care-service-and-repair.206327/post-2790791

Tutorial Nikon F3(AF): Replacing the LCD

On the Nikon F3 and its versions, the LCD that is reflected in the viewfinder can fail partially or completely. Corrosion of the LCD connections could be a cause, or the LCD sandwich no longer seals tightly; black spots can also appear that make the digits unreadable. The only solution here is...

www.photrio.com



[eli griggs]

They

I like those!

Looks like "Swiss oilers" for watchmakers.

Buy full sets of four probes, the job will thank you by being that much easier to complete.

Avoid any probes with burrs and lose fibers.

Cheers.
