While looking for a solution to an error on an X-500, I came across a note about battery voltage in the associated Minolta service manual.
A battery whose voltage is measured without further connection to a load (open-circuit voltage) may still appear to be ok, even though when inserted into the camera it no longer supplies enough current for trouble-free function.
For me, this particularly applies to the batteries that have accumulated over time because, although they are no longer fresh, they still appear to be usable since they haven't had much to do. At least that's my impression.
Test circuit for a camera battery
Minolta provides a small test circuit for the X-500 with which the (terminal) voltage of the battery can be measured under load - i.e. when the camera is switched on.
Since I suspect a weak battery to be the cause of the error, I set up this test circuit.
The candidate is a 3V DL1/3N lithium battery that I inserted into the X-500 from my stash of used batteries.
I would like to determine what the voltage of the battery in the camera is.
Without load - i.e. the voltage measured directly at the battery - the result is a voltage of 2.9 volts.
That looks good.
3 volts is the nominal voltage that is written on the battery and that is what my X-500 wants.

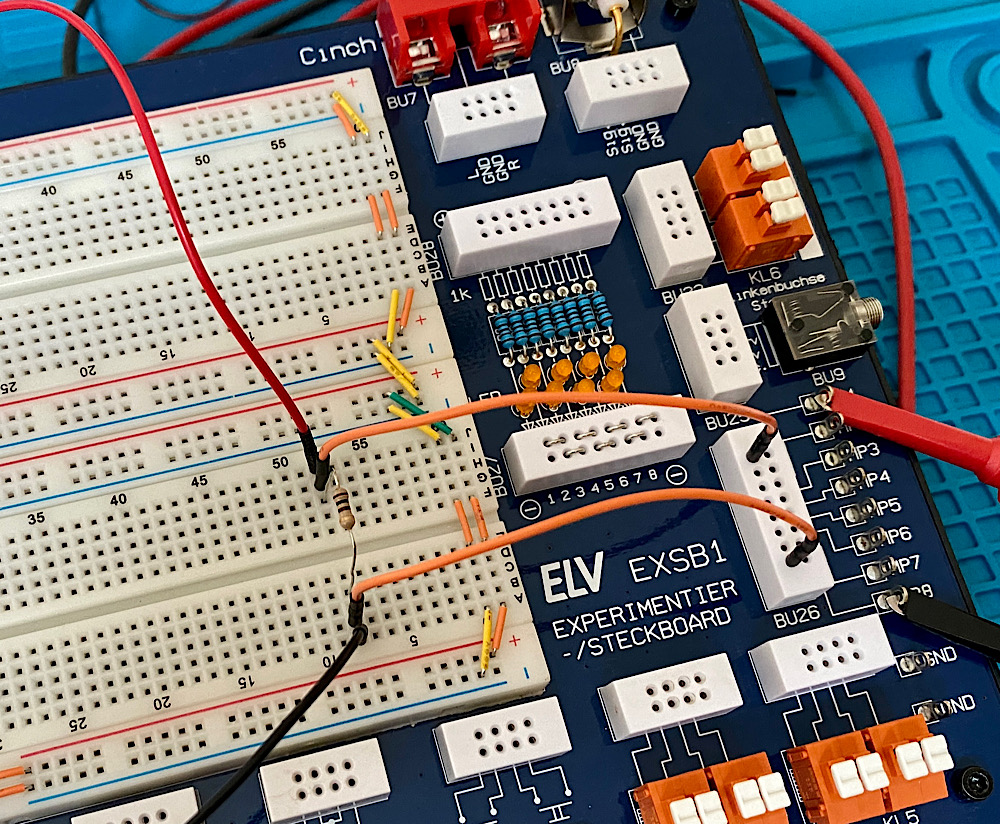

The test circuit on the experiment board.
To measure voltage, the multimeter is connected to a 100 ohm resistor, which simulates the load caused by the camera.
I contact the battery with a crocodile clip cable as a switch.

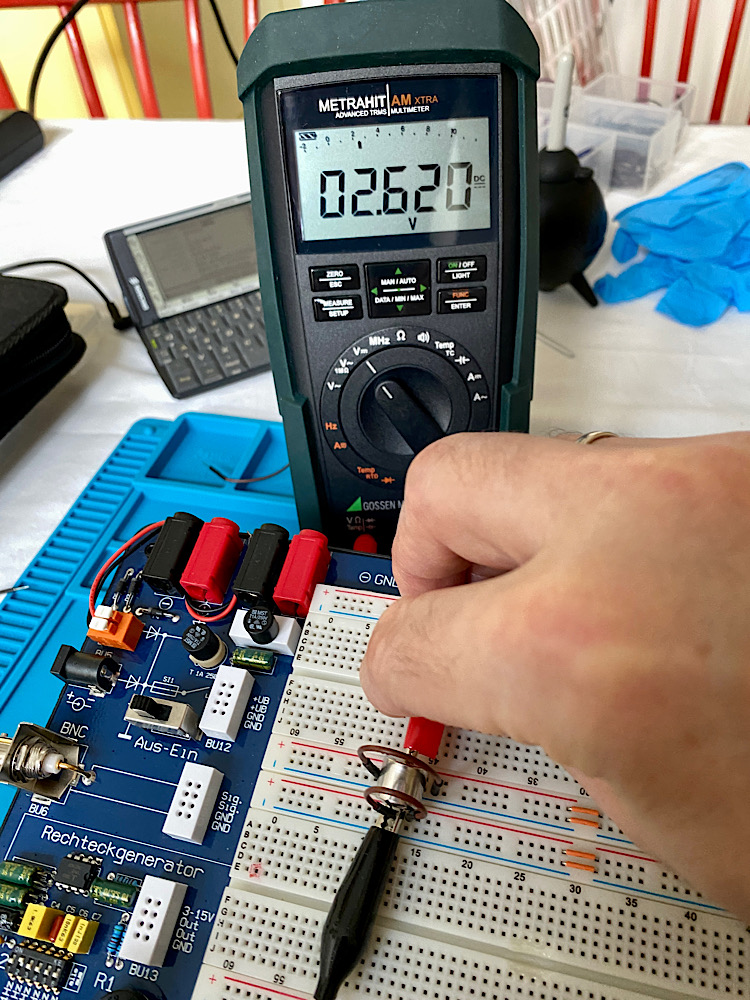

Measured voltage across the resistor: 2.6 volts
This doesn't look so good anymore.
0.3 volts of the 2.9 volt battery voltage drop across the internal resistance of the battery.
Only 2.6 volts drop across the resistor or are available to the X-500 when it is in operation.
But it should be 3 volts.
This could be the reason why my X-500 no longer works as expected.

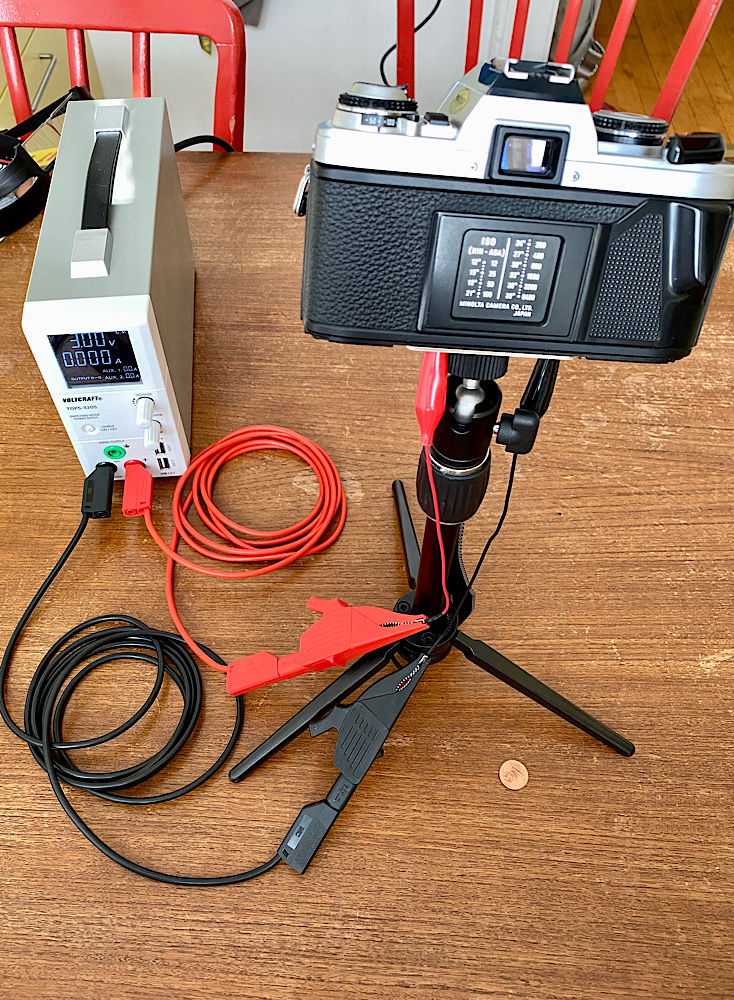

In order to rule out the battery as the cause of the error, I will connect the X-500 to my laboratory power supply, which supplies a stable DC voltage of 3 volts.
Stable means that 3 volts are available continuously and regardless of time, even under load.
Unlike a battery, which weakens over time as its internal resistance increases. This causes the voltage delivered to be lower.
In addition, here is the calculation of the internal resistance of my battery, which is already considerable at 11.5 ohms.
The higher the internal resistance (due to battery consumption), the more voltage it steals that should actually be available for the camera to work.
In the equivalent circuit diagram, the two measured battery voltages (when idle and under load) are marked blue with M1 and M2.
By applying one of Kirchhoff's laws and those of Ohm, the internal resistance of the battery can be calculated.
(In the sketch, the internal resistance should be on the right side with the calculated 11.5 ohms so that the voltage arrows are in order. But the result remains the same.
Recreated in the circuit simulation.
Above is the expected battery voltage and below is the actual battery voltage under load.
Conclusion
When it comes to testing a camera, the freshest possible batteries should be used to rule out errors due to undervoltage. Test operation on a stable voltage source such as a laboratory power supply would be ideal.
I was about to open the camera to take a look, accompanied by the troubleshooting table in the service manual.
Maybe I can save myself that now
Sequel follows.
—
Circuit simulation with EveryCircuit
everycircuit.com
A battery whose voltage is measured without further connection to a load (open-circuit voltage) may still appear to be ok, even though when inserted into the camera it no longer supplies enough current for trouble-free function.
For me, this particularly applies to the batteries that have accumulated over time because, although they are no longer fresh, they still appear to be usable since they haven't had much to do. At least that's my impression.
Test circuit for a camera battery
Minolta provides a small test circuit for the X-500 with which the (terminal) voltage of the battery can be measured under load - i.e. when the camera is switched on.

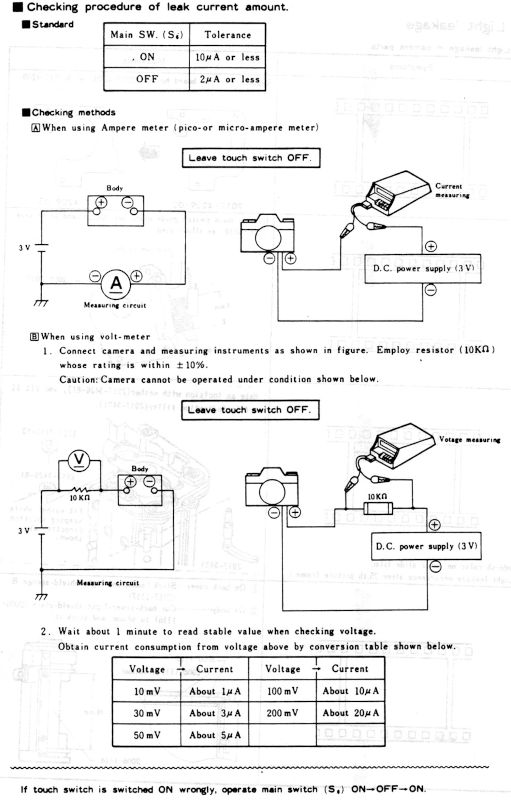

Battery capacity check
1. A 100 Ohm resistor is paralleled with the battery at normal temperature (25 +/- 25 °C) as illustrated. A digital multimeter or voltmeter is connected to the battery in parallel to the resistor to measure the voltage. In this case, be sure to perform quick measurement.
2. The battery, with its voltage more than 1.4 V. is regarded as normal.
Since I suspect a weak battery to be the cause of the error, I set up this test circuit.
The candidate is a 3V DL1/3N lithium battery that I inserted into the X-500 from my stash of used batteries.
I would like to determine what the voltage of the battery in the camera is.
Without load - i.e. the voltage measured directly at the battery - the result is a voltage of 2.9 volts.
That looks good.
3 volts is the nominal voltage that is written on the battery and that is what my X-500 wants.
The test circuit on the experiment board.
To measure voltage, the multimeter is connected to a 100 ohm resistor, which simulates the load caused by the camera.
I contact the battery with a crocodile clip cable as a switch.
Measured voltage across the resistor: 2.6 volts
This doesn't look so good anymore.
0.3 volts of the 2.9 volt battery voltage drop across the internal resistance of the battery.
Only 2.6 volts drop across the resistor or are available to the X-500 when it is in operation.
But it should be 3 volts.
This could be the reason why my X-500 no longer works as expected.
In order to rule out the battery as the cause of the error, I will connect the X-500 to my laboratory power supply, which supplies a stable DC voltage of 3 volts.
Stable means that 3 volts are available continuously and regardless of time, even under load.
Unlike a battery, which weakens over time as its internal resistance increases. This causes the voltage delivered to be lower.
In addition, here is the calculation of the internal resistance of my battery, which is already considerable at 11.5 ohms.
The higher the internal resistance (due to battery consumption), the more voltage it steals that should actually be available for the camera to work.
In the equivalent circuit diagram, the two measured battery voltages (when idle and under load) are marked blue with M1 and M2.
By applying one of Kirchhoff's laws and those of Ohm, the internal resistance of the battery can be calculated.
(In the sketch, the internal resistance should be on the right side with the calculated 11.5 ohms so that the voltage arrows are in order. But the result remains the same.
Recreated in the circuit simulation.
Above is the expected battery voltage and below is the actual battery voltage under load.
Conclusion
When it comes to testing a camera, the freshest possible batteries should be used to rule out errors due to undervoltage. Test operation on a stable voltage source such as a laboratory power supply would be ideal.
I was about to open the camera to take a look, accompanied by the troubleshooting table in the service manual.
Maybe I can save myself that now
Sequel follows.
—
Circuit simulation with EveryCircuit
EveryCircuit: Animated interactive circuit simulator
Interactive real-time circuit simulation and animated visualization inspired students and engineers to design 2.6 million circuits online and in mobile app.
