Averages are coming....Averages are coming......(sung to the coca cola Christmas ad)

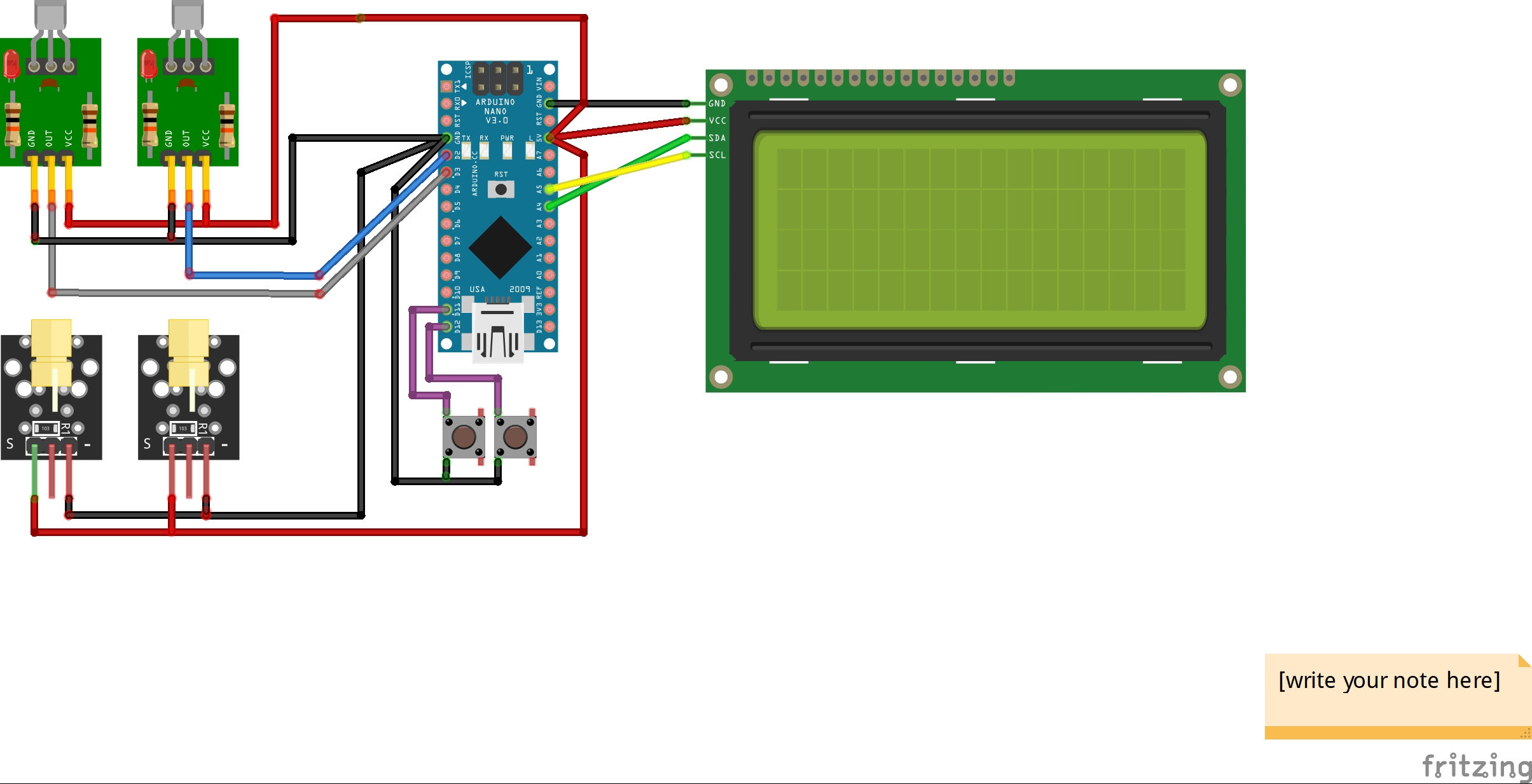

Latest wiring diagram below. Can you spot the changes?
Only change is the addition of two push button switches to pins D11 & D12.
These buttons are optional. One resets the average count to zero.
The other is for future ideas, possibly to toggle the LCD to show current or average readings.
In lieu of a push-button, you can just use a jumper wire between D11 or D12 and 0V, just be careful not to touch it to anything else!
View attachment 334401
Ah OK, I'll take that on then. I made a spreadsheet to do it yesterday, to check my maths, and it should be simple enough to construct a string for printout/display.Fractions are a nightmare on the Arduino. I have cheated and vulgar fractions are only shown for times less that 1 second. Trying to display deviations in stops is a challenge I'm not going to take on
The only thing is that if you want to calculate deviation from the target speed, you need to know what the current target speed is. That's why I was going to loop round all the shutter speeds, doing a fixed number of tests on each.The average can be reset by the push of a button, so one is not limited to a certain number of firings.
Curiosity aroused. WiFi and Bluetooth. Is this another photography-related project?For new projects, I'm going to move to the ESP32. Cheap as chips (pun intended) from China, cheaper than Nano & far more everything under the bonnet.

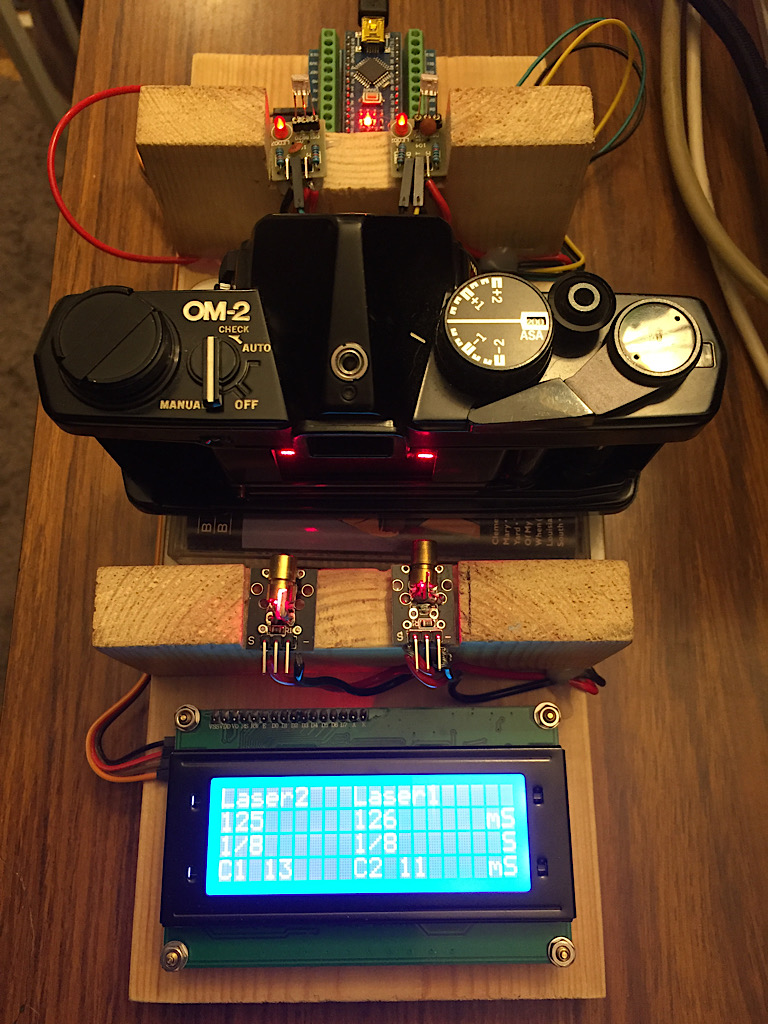

Blu-tack no more! I gave in and got a hot glue gun, also cut rebates in the wood for placing the lasers and sensors (at a 32mm spacing) and tidied up the wiring with the glue gun as well and then downloaded version 2.9.7.

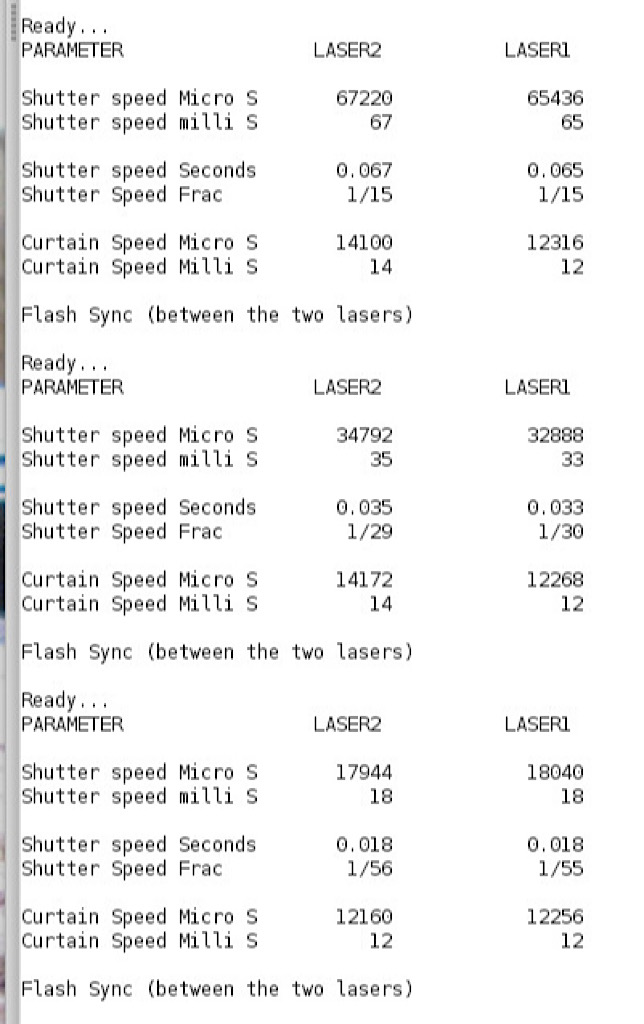

View attachment 334435View attachment 334436
The only thing is that if you want to calculate deviation from the target speed, you need to know what the current target speed is. That's why I was going to loop round all the shutter speeds, doing a fixed number of tests on each.
Chiefly I don’t understand what is happening in the mechanism to make the laser 1 and laser 2 results so different.
Perhaps accuracy would be boosted by blasting the lasers through 1mm drill holes?
I think you’d have to restrict both ends of the beam,
A 'professional' tester uses just one light source & the sensors are in a little box with slits cut to allow the light through, so having an unrestricted laser should not decrease accuracy.
If I ever box mine up, the lasers and rx sensors would be reversed. with the box containing the rx sensors fitting against the film plane. It was just easier to line up, having the lasers shine on the curtain.
If I port the code to an ESP32 (the Nano memory is full) it would be easy to add an alignment routine, using Bulb on the camera, to ensure camera gate is aligned. Could also add an Oled screen and have far more data displayed.
However, not sure whether to do that or move on & build a light meter. The light meter maths maybe too complex & there are different equations for incident & reflected light.
Might just go back to brewing beer) (no Arduino required)
Thanks for your kind comments.I'd like to see this in continued evolution. Keep the older versions available, so people can build it as simple or complex as they like. It is one of the best shutter tester projects I have seen on the internet for focal plane shutters.
I'm actually building a 'pro' style tester from plans, but it uses the old school diffuse light and tiny openings for the sensors. Lasers are step ahead.
