What does <drilling out screws> mean?

[Andreas Thaler]

News on the topic from Mike:




I hope the video is playing in the original English version.

If not, here's the overview page.

mikeno62

Hello Everybody and welcome to my repair canal, I like doing repair of almost everything that can be disassembled and of course assembled again. It gives me a good feeling when i have done a complicated repair, it's just like a really good puzzel. It can be a camera or lenses, or anything else...

www.youtube.com



[dxqcanada]

Yes, you can use left-handed drill bits as an extractor ... I also have set that I use to drill out screws, as if it catches the screw it will turn it out ... otherwise it goes through and I can pick the bits out.
Though not easy to find for those tiny screws, much easier on the large screws used on the camera mount ring.



[Sirius Glass]

Yes, you can use left-handed drill bits as an extractor ... I also have set that I use to drill out screws, as if it catches the screw it will turn it out ... otherwise it goes through and I can pick the bits out.
Though not easy to find for those tiny screws, much easier on the large screws used on the camera mount ring.

Known as "Easy Outs".



[Andreas Thaler]

Yes, you can use left-handed drill bits as an extractor ... I also have set that I use to drill out screws, as if it catches the screw it will turn it out ... otherwise it goes through and I can pick the bits out.
Though not easy to find for those tiny screws, much easier on the large screws used on the camera mount ring.

I found this shop in Germany.

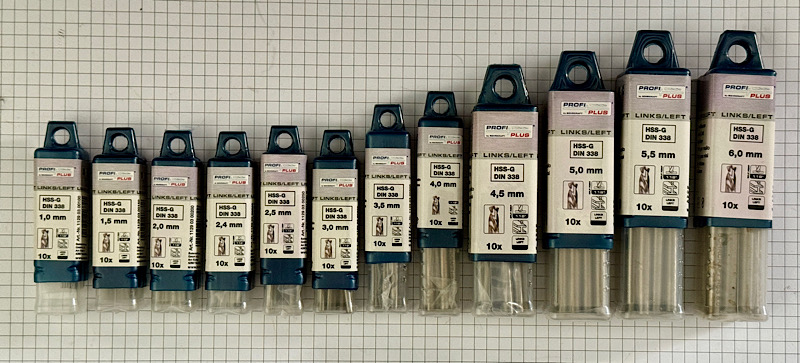

Left-handed drills up from 1 mm diameter:

Gewindebohrer & Gewindeschneider Online Shop

Gewindeschneidwerkzeuge mit der Garantie einer gleich bleibenden, guten Industriequalität sowie eine 100% Lieferfähigkeit unseres breiten Produkportfolios zum besten Preis.

www.gewindebohrer-shop.de

Look for

Spiralbohrer Links



[Hassasin]

Implied meaning of "drilling out screw" is to retain original threads, as this is THE ONLY way to retain screw position (without plugging the hole up and trying anew), the smaller the screw the harder to impossible this is. This is critical in places where location of a screw also means registration with other components.

But when one drills out a screw with larger bit, well ... the screw is out, the hole is now bigger and nearly guaranteed to be centered differently. For parts and locations where final look and integrity of design is important (or critical) this is a "duct tape" solution.
